Technical specifications

  • Size: | 040 | 060 | 080 | 120 |
  • Gear ratio range: 3 to 512
  • Max. torsional backlash (1-stage) ≤ 13 - ≤ 5 arcmin
  • Max. acceleration torque 9.6 - 432 Nm
  • Output:
    - Housing flange with threaded hole (B14)
    - output shaft with feather key
    - smooth output shaft
  • Input:
    - Servo motor adapter
    - Input shaft with feather key

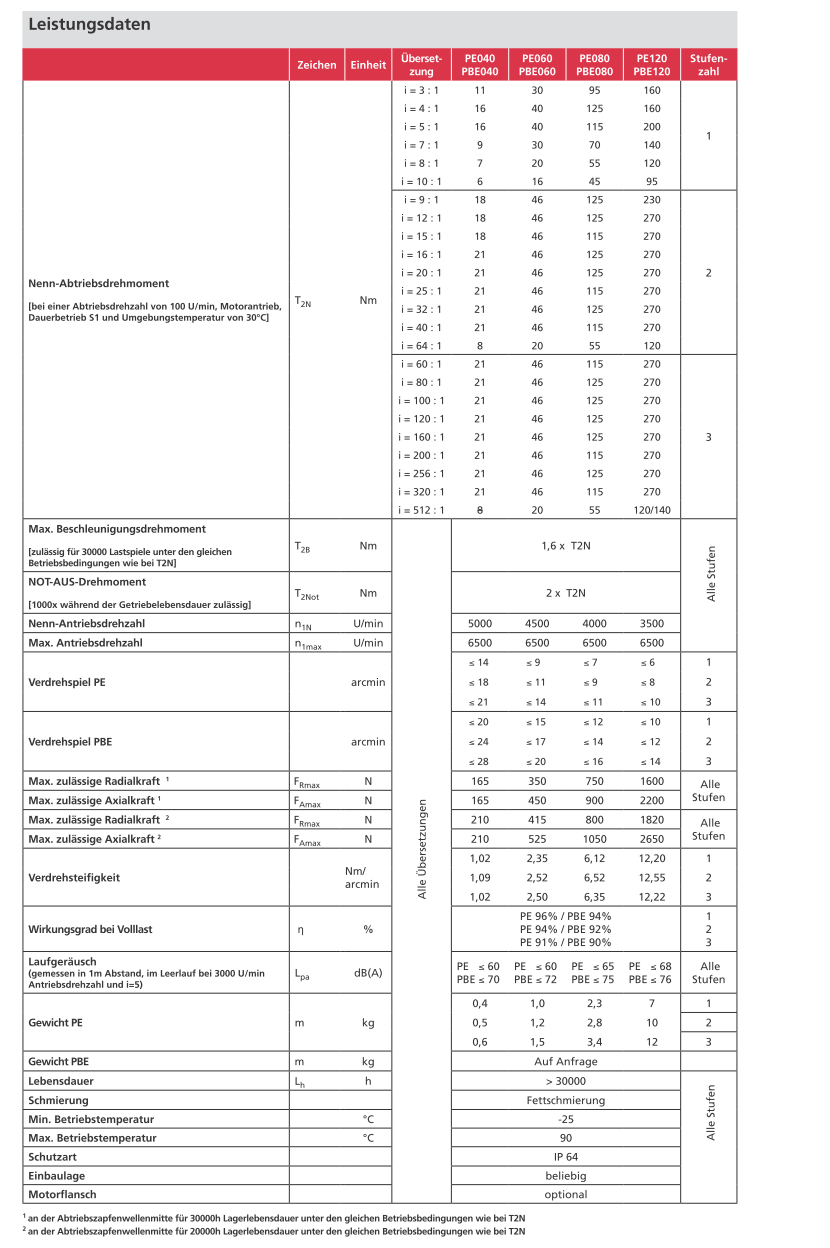

Performance data

Performance data

Dimensions

Dimensions
